alloybond

Alloybond is a high strength, fluoride releasing, amalgam bond

Alloybond’s unique dimethacrylate resin groups provide twice the cross linking and superior strength.

Alloybond does not contain BisGMA nor Bis-Phenol A.

Twice the cross linking

SDI’s unique dimethacrylate resin, with carboxylic groups, provide twice the cross linking compared to the 4-meta system. The SDI resin system contains two cross links per chain when polymerized, whilst the 4-meta monomethacrylate system cross links only once. Additional cross links create a stronger resin matrix, superior chemical bonding and higher cohesive strength.

Denser resin matrix

The Alloybond monomers are more closely arranged for a stronger resin matrix.

Stronger resin matrix

SDI’s Alloybond offers stronger dentin bond strength, without the complication of adding filler required by other amalgam bonds.

Alloybond resin matrix

4-meta resin matrix

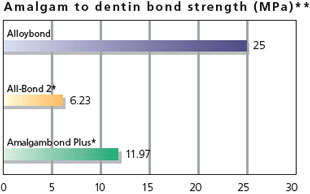

Alloybond is twice as strong. Permite amalgam used.

*Are not the registered trademarks of SDI Limited.

**Source-Published and SDI test data.

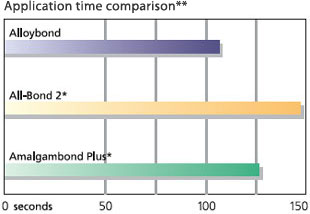

Alloybond is quick and uncomplicated.

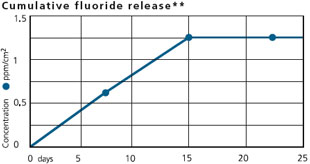

Alloybond releases fluoride. All-Bond 2* and Amalgambond Plus* do not.

Screen Shot 2017-02-21 at 4.41.58 PM

The Alloybond acetone based primer penetrates deeply into the dentin tubules and surrounding hybrid zone forming a retentive Hybrid-Lock. Complete sealing eliminates microleakage and postoperative sensitivity. Alloybond provides effective pulpal protection.

Screen Shot 2017-02-21 at 4.48.14 PM

The Alloybond resin tags form at the peripheral of the amalgam restoration; without interfering
with the amalgam setting reaction. (Permite amalgam used)

Screen Shot 2017-02-21 at 4.57.01 PM

Alloybond’s adhesive component forms resin tags that mechanically lock into the amalgam restoration.

Screen Shot 2017-02-21 at 4.59.14 PM

Alloybond creates a complete merge between the amalgam and resin.

Indications

  • Amalgam Bonding
  • Composite Bonding
  • Bonding to sand blasted, etched, silane treated porcelain
  • Bonding to sand blasted, silane treated gold
  • Cementing crowns, bridges, inlays, onlays

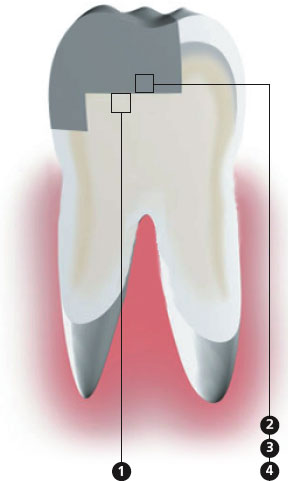

Photo 1
Duke E.S., DDS, MSD, (1997). Ultrastructural and Physical Property Studies of STAE Single Component Adhesive System, Biomedical Consulting, San Antonio, USA.

Photos 2, 3, 4
Ngo H., DDS, MDS, (1998). Adelaide University, Australia


Isolate tooth, prepare cavity.

1. Etch tooth surface with 37% phosphoric acid for 20 seconds

2. Wash thoroughly

3. Remove excess water. Keep moist

4. Apply Alloybond Primer to saturate all internal surfaces.

5. Blow gently with dry, oil-free air for 2 seconds to evaporate solvent. Leave surface glossy

6. Light cure for 10 seconds
7. Mix one drop of Alloybond Base and one drop of Alloybond Catalyst.

8. Apply mixture to all internal surfaces.

9. Start trituration of amalgam.

10. Condense and carve amalgam within 60 seconds of applying Alloybond Base and Catalyst mixture, or place composite 60 seconds after applying Alloybond Base and Catalyst mixture

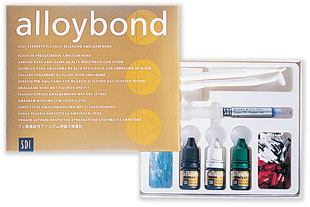

Alloybond Kit

  • 1 x 5ml Alloybond Primer
  • 1 x 5ml Alloybond Base
  • 1 x 5ml Alloybond Catalyst
  • 1 x 2ml syringe of Super Etch Brushes, handles, mixing pad 25 Super Etch disposable tips

5544001
